Horizontal ball mill as one of the widest used powder grinding machine is also called cylinder mill.

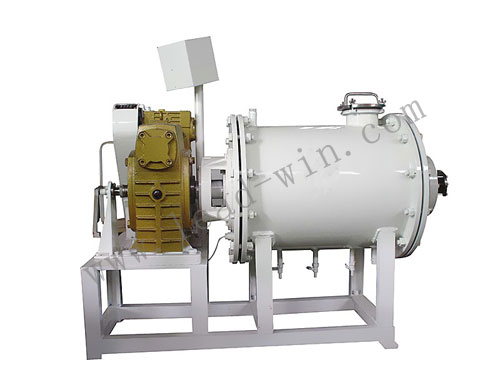

LHBM horizontal ball mill has a horizontal, rotating hollow chamber which holds grinding medium and to-be-grinded material. When the chamber running, the material and medium are thrown up and fallen down by gravity. The material are crushed, clashed, grinded and cut during this process.
The mature structure and configuration make it easily operated and reliably work and high adaptive capacity to grind dry, wet or damp powder with wide range hardness to 5mm~1um.The internal line can be nylon, PU, stainless steel, alumina or manganese steel and inverter is available for speed adjustment.
| Mode & Spec. | LHBM-100L | LHBM-200L | LHBM-300L | LHBM-500L | LHBM-1000L | |
| Motor | KW | 2.2 | 3 | 3.7 | 5.5 | 7.5/11 |
| Speed | RPM | 50 | 45 | 42 | 40 | 35 |
| Capacity for Material | Liters | 40 | 90 | 140 | 200 | 450 |
| Capacity for Boll | Liters | 50 | 100 | 150 | 250 | 550 |
Remarks：
1、All data are Lead-win standard spec. Customized design are available according to real production requirement;
2、Other options：LHBM-1500L、LHBM-2500L、LHBM-3000L。
